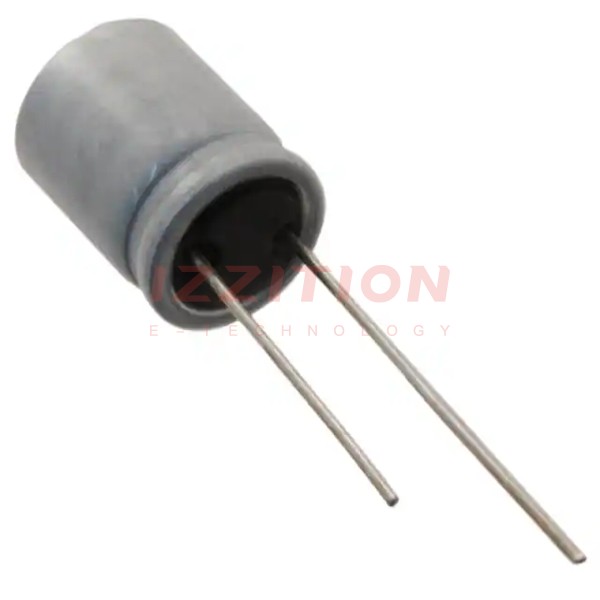

| Part Number | PLE0E152MDO1 | PLF0E152MDO1 | PLE0E102MDO1 |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Active | Not For New Designs |
| Type | Polymer | Polymer | Polymer |
| Capacitance | 1500 µF | 1500 µF | 1000 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 2.5 V | 2.5 V | 2.5 V |
| ESR (Equivalent Series Resistance) | 5mOhm | 8mOhm | 5mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Features | - | - | - |
| Ripple Current @ Low Frequency | - | - | - |
| Ripple Current @ High Frequency | 7.3 A @ 100 kHz | 5.5 A @ 100 kHz | 7.1 A @ 100 kHz |
| Impedance | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.512" (13.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
