Nichicon-PHC1853470KJ - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	0.47 µF
Tolerance:	±10%
Voltage Rating - AC:	500V
Voltage Rating - DC:	850V
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	5.4 mOhms
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Through Hole
Package / Case:	Axial
Size / Dimension:	0.650" Dia x 1.260" L (16.50mm x 32.00mm)
Height - Seated (Max):	-
Termination:	PC Pins
Lead Spacing:	-
Applications:	High Frequency, Switching
Ratings:	-
Features:	-

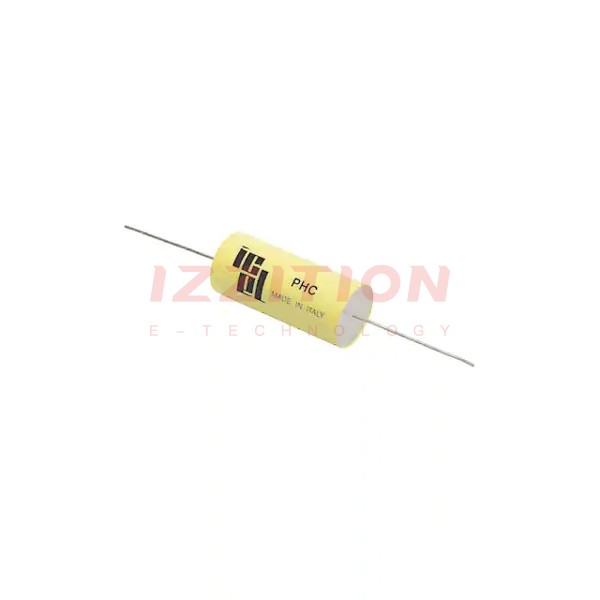

Nichicon PHC1853470KJ
