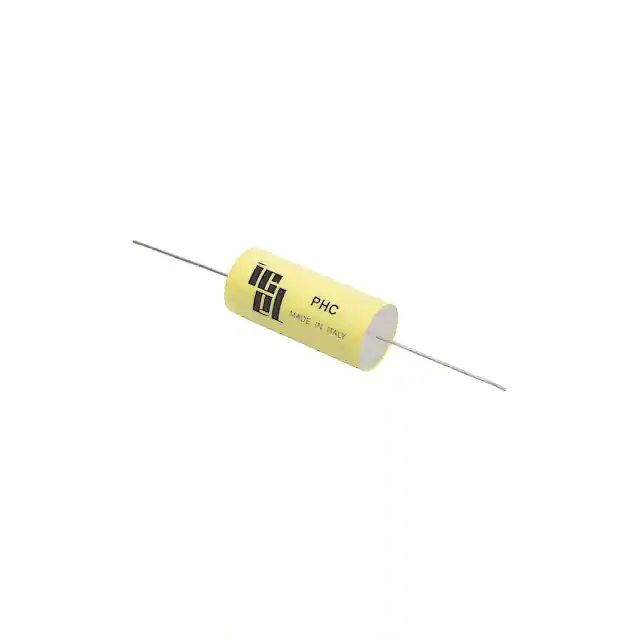

| Part Number | PHC1604200KN | PHC1704200KN | PHC1604300KN | PHC1604220KN | PHC1604250KN | PHC1604500KN | PHC1604400KN | PHC1604200KJ |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 2 µF | 2 µF | 3 µF | 2.2 µF | 2.5 µF | 5 µF | 4 µF | 2 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 330V | 400V | 330V | 330V | 330V | 330V | 330V | 330V |
| Voltage Rating - DC | 600V | 700V | 600V | 600V | 600V | 600V | 600V | 600V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 5.3 mOhms | 4.8 mOhms | 4.2 mOhms | 4.8 mOhms | 4.6 mOhms | 6.3 mOhms | 3.6 mOhms | 4.1 mOhms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.709" Dia x 1.732" L (18.00mm x 44.00mm) | 0.886" Dia x 1.732" L (22.50mm x 44.00mm) | 0.866" Dia x 1.732" L (22.00mm x 44.00mm) | 0.866" Dia x 1.260" L (22.00mm x 32.00mm) | 0.787" Dia x 1.732" L (20.00mm x 44.00mm) | 1.083" Dia x 1.732" L (27.50mm x 44.00mm) | 1.004" Dia x 1.732" L (25.50mm x 44.00mm) | 0.827" Dia x 1.260" L (21.00mm x 32.00mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | - | - | - | - | - | - | - | - |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - |
