Please send RFQ , we will respond immediately.

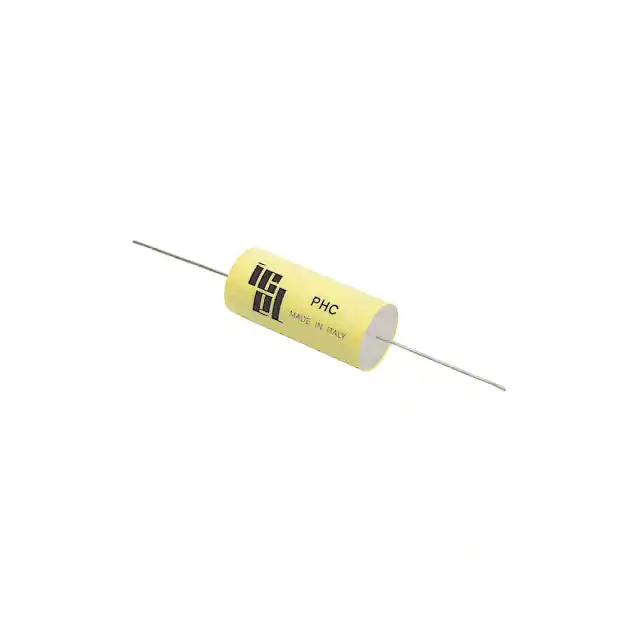

| Part Number | PHC1405200KR | PHC1405250KR | PHC1405200KS | PHC1405220KR | PHC1405100KR |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 20 µF | 25 µF | 20 µF | 22 µF | 10 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 250V | 250V | 250V | 250V | 250V |
| Voltage Rating - DC | 400V | 400V | 400V | 400V | 400V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 4.3 mOhms | 3.8 mOhms | 4.7 mOhms | 4.1 mOhms | 6.3 mOhms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 1.378" Dia x 2.087" L (35.00mm x 53.00mm) | 1.555" Dia x 2.087" L (39.50mm x 53.00mm) | 1.378" Dia x 2.087" L (35.00mm x 53.00mm) | 1.457" Dia x 2.087" L (37.00mm x 53.00mm) | 0.984" Dia x 1.299" L (25.00mm x 33.00mm) |
| Height - Seated (Max) | - | - | - | - | - |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | - | - | - | - | - |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
