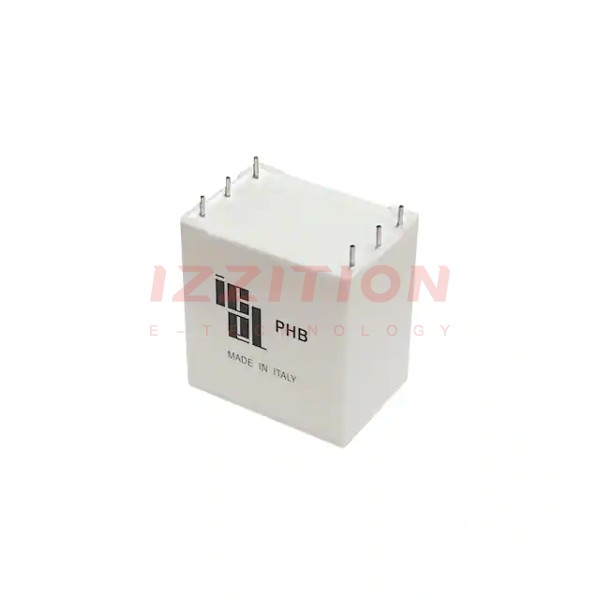

| Part Number | PHB1704200KJL | PHB1704220KJL | PHB1704200KJS | PHB1704300KJL | PHB1704400KJL | PHB1704500KJL | PHB1704200KHL |
|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 2 µF | 2.2 µF | 2 µF | 3 µF | 4 µF | 5 µF | 2 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 400V | 400V | 400V | 400V | 400V | 400V | 400V |
| Voltage Rating - DC | 700V | 700V | 700V | 700V | 700V | 700V | 700V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 4.9 mOhms | 4.7 mOhms | 4.9 mOhms | 3.9 mOhms | 3.3 mOhms | - | 3.5 mOhms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.673" L x 0.866" W (42.50mm x 22.00mm) | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.673" L x 1.181" W (42.50mm x 30.00mm) | 1.673" L x 1.181" W (42.50mm x 30.00mm) | 1.260" L x 0.866" W (32.00mm x 22.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) | 1.181" (30.00mm) | 1.457" (37.00mm) | 1.457" (37.00mm) | 1.772" (45.00mm) | 1.772" (45.00mm) | 1.457" (37.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 1.476" (37.50mm) | 1.083" (27.50mm) | 1.476" (37.50mm) | 1.476" (37.50mm) | 1.476" (37.50mm) | 1.083" (27.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - |
