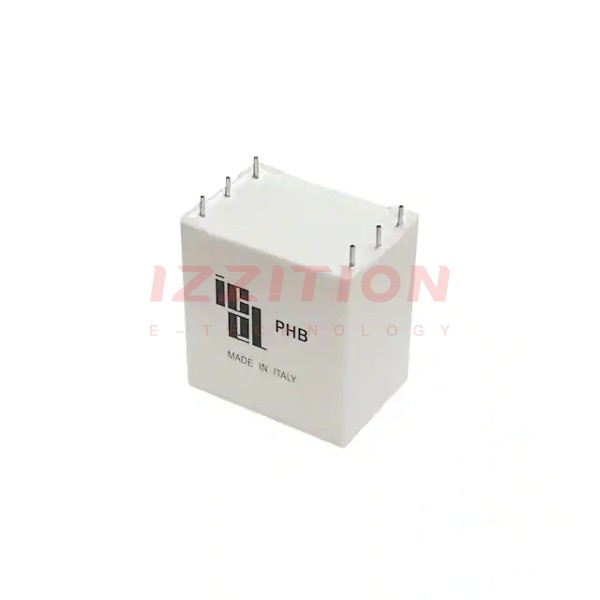

| Part Number | PHB1404200KHL | PHB1404220KHL | PHB1404500KHL | PHB1404250KHL | PHB1404300KHL | PHB1404400KHL | PHB1404100KHL |
|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 2 µF | 2.2 µF | 5 µF | 2.5 µF | 3 µF | 4 µF | 1 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 275V | 275V | 275V | 275V | 275V | 275V | 275V |
| Voltage Rating - DC | 400V | 400V | 400V | 400V | 400V | 400V | 400V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 4.7 mOhms | 4.4 mOhms | 2.8 mOhms | 4.2 mOhms | 3.6 mOhms | 3.2 mOhms | 6.7 mOhms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.260" L x 0.591" W (32.00mm x 15.00mm) | 1.260" L x 0.591" W (32.00mm x 15.00mm) | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.260" L x 0.591" W (32.00mm x 15.00mm) | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.043" L x 0.433" W (26.50mm x 11.00mm) |
| Height - Seated (Max) | 0.965" (24.50mm) | 0.965" (24.50mm) | 1.457" (37.00mm) | 0.965" (24.50mm) | 1.299" (33.00mm) | 1.299" (33.00mm) | 0.787" (20.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) | 0.886" (22.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - |
