PCZ1E271MCL1GS
  • Share:

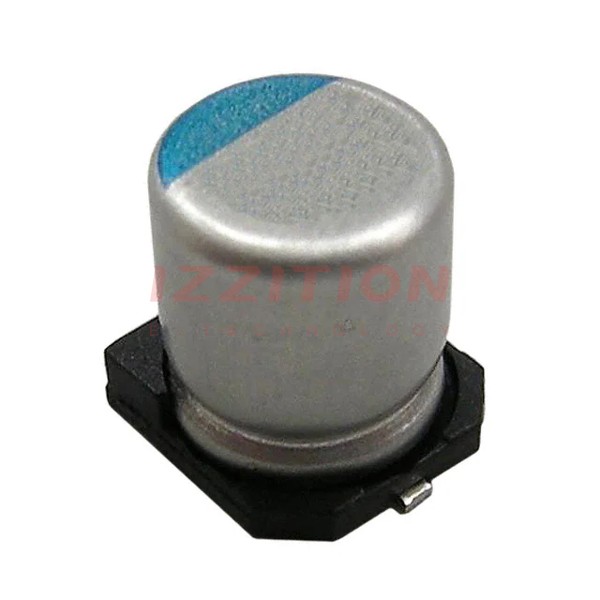

Nichicon PCZ1E271MCL1GS

Manufacturer No:
PCZ1E271MCL1GS
Manufacturer:
Nichicon
Package:
Tape & Reel (TR)
Datasheet:
PCZ1E271MCL1GS Datasheet
ECAD Model:
-
Description:
CAP ALUM POLY 270UF 20% 25V SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Polymer
Capacitance:270 µF
Tolerance:±20%
Voltage - Rated:25 V
ESR (Equivalent Series Resistance):20mOhm
Lifetime @ Temp.:2000 Hrs @ 150°C
Operating Temperature:-55°C ~ 150°C
Ratings:AEC-Q200
Applications:Automotive
Features:-
Ripple Current @ Low Frequency:90 mA @ 120 Hz
Ripple Current @ High Frequency:1.8 A @ 100 kHz
Impedance:-
Lead Spacing:-
Size / Dimension:0.394" Dia (10.00mm)
Height - Seated (Max):0.413" (10.50mm)
Surface Mount Land Size:0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type:Surface Mount
Package / Case:Radial, Can - SMD
0 Remaining View Similar

In Stock

$4.13
46

Please send RFQ , we will respond immediately.
