PCX1H5R6MCL1GS
  • Share:

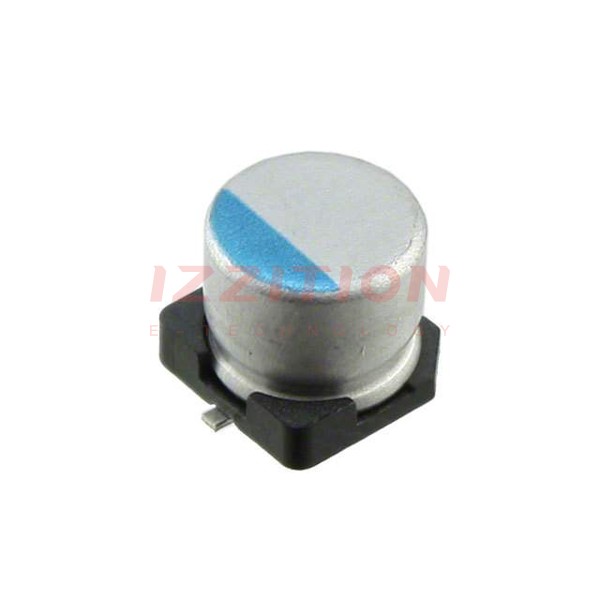

Nichicon PCX1H5R6MCL1GS

Manufacturer No:
PCX1H5R6MCL1GS
Manufacturer:
Nichicon
Package:
Tape & Reel (TR)
Datasheet:
PCX1H5R6MCL1GS Datasheet
ECAD Model:
-
Description:
CAP ALUM POLY 5.6UF 20% 50V SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Polymer
Capacitance:5.6 µF
Tolerance:±20%
Voltage - Rated:50 V
ESR (Equivalent Series Resistance):105mOhm
Lifetime @ Temp.:1500 Hrs @ 125°C
Operating Temperature:-55°C ~ 125°C
Ratings:-
Applications:General Purpose
Features:-
Ripple Current @ Low Frequency:-
Ripple Current @ High Frequency:700 mA @ 100 kHz
Impedance:-
Lead Spacing:-
Size / Dimension:0.248" Dia (6.30mm)
Height - Seated (Max):0.236" (6.00mm)
Surface Mount Land Size:0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type:Surface Mount
Package / Case:Radial, Can - SMD
0 Remaining View Similar

In Stock

$1.50
62

Please send RFQ , we will respond immediately.
