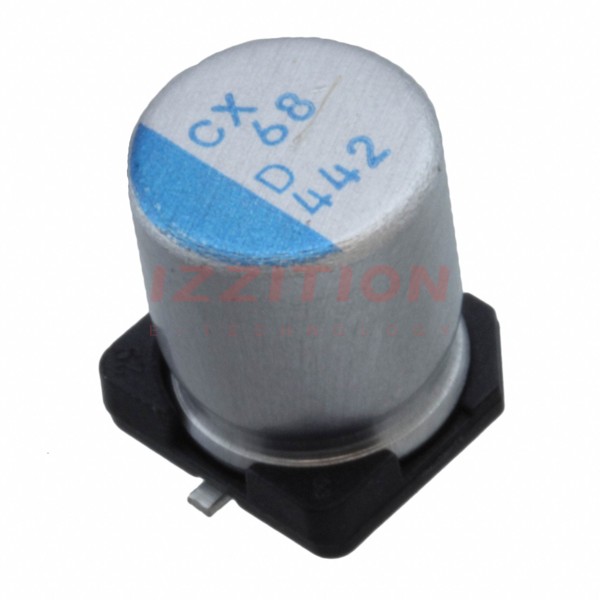

| Part Number | PCX1E560MCL1GS | PCX1V560MCL1GS | PCX1E560MCS1GS | PCV1E560MCL1GS | PCX1D560MCL1GS |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active |
| Type | Polymer | Polymer | Polymer | Polymer | Polymer |
| Capacitance | 56 µF | 56 µF | 56 µF | 56 µF | 56 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 25 V | 35 V | 25 V | 25 V | 20 V |
| ESR (Equivalent Series Resistance) | 35mOhm | 33mOhm | 35mOhm | 50mOhm | 50mOhm |
| Lifetime @ Temp. | 1500 Hrs @ 125°C | 3000 Hrs @ 125°C | 1500 Hrs @ 125°C | 3000 Hrs @ 105°C | 3000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 125°C |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Features | - | - | - | - | - |
| Ripple Current @ Low Frequency | - | - | - | - | - |
| Ripple Current @ High Frequency | 1.4 A @ 100 kHz | 2 A @ 100 kHz | 1.4 A @ 100 kHz | 1.3 A @ 100 kHz | 1.3 A @ 100 kHz |
| Impedance | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.315" Dia (8.00mm) | 0.248" Dia (6.30mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.319" (8.10mm) | 0.472" (12.00mm) | 0.335" (8.50mm) | 0.276" (7.00mm) | 0.276" (7.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
