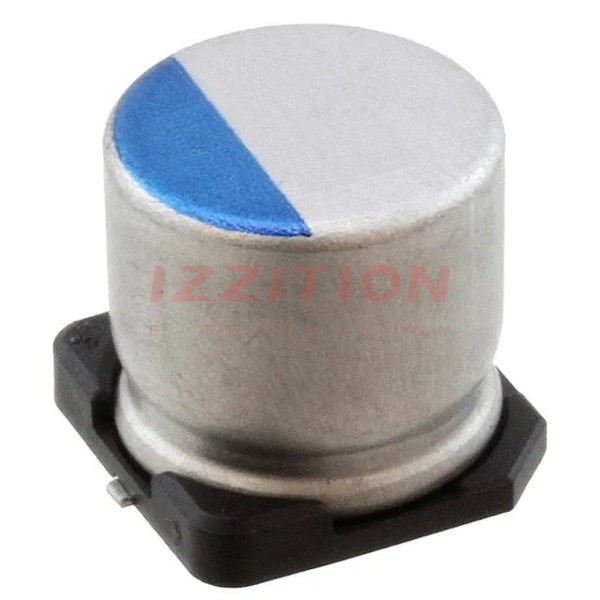

| Part Number | PCV1H470MCL1GS | PCV1H470MCL7GS | PCV1H470MCL2GS | PCV1J470MCL1GS | PCX1H470MCL1GS | PCV1D470MCL1GS |
|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Polymer | Polymer | Polymer | Polymer | Polymer | Polymer |
| Capacitance | 47 µF | 47 µF | 47 µF | 47 µF | 47 µF | 47 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V | 50 V | 63 V | 50 V | 20 V |
| ESR (Equivalent Series Resistance) | 30mOhm | 29mOhm | 37mOhm | 30mOhm | 30mOhm | 55mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 125°C | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 105°C |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Features | - | - | - | - | - | - |
| Ripple Current @ Low Frequency | - | - | - | - | - | - |
| Ripple Current @ High Frequency | 2.2 A @ 100 kHz | 3.3 A @ 100 kHz | 2.6 A @ 100 kHz | 2.5 A @ 100 kHz | 2.5 A @ 100 kHz | 1 A @ 100 kHz |
| Impedance | - | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - | - |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.315" (8.00mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
