Nichicon-PCS0G561MCL1GS - Aluminum - Polymer Capacitors Product Specifications and Latest Quotes

Type:	Polymer
Capacitance:	560 µF
Tolerance:	±20%
Voltage - Rated:	4 V
ESR (Equivalent Series Resistance):	18mOhm
Lifetime @ Temp.:	5000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Ratings:	-
Applications:	General Purpose
Features:	-
Ripple Current @ Low Frequency:	-
Ripple Current @ High Frequency:	3.6 A @ 100 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.315" Dia (8.00mm)
Height - Seated (Max):	0.276" (7.00mm)
Surface Mount Land Size:	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD

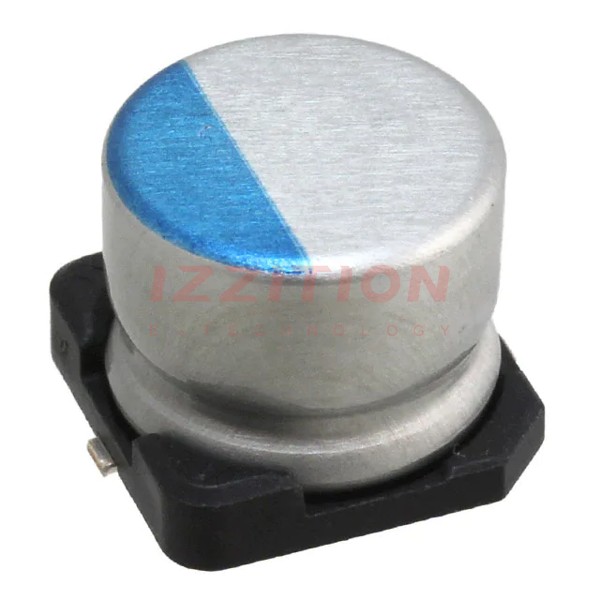

Nichicon PCS0G561MCL1GS
