Please send RFQ , we will respond immediately.

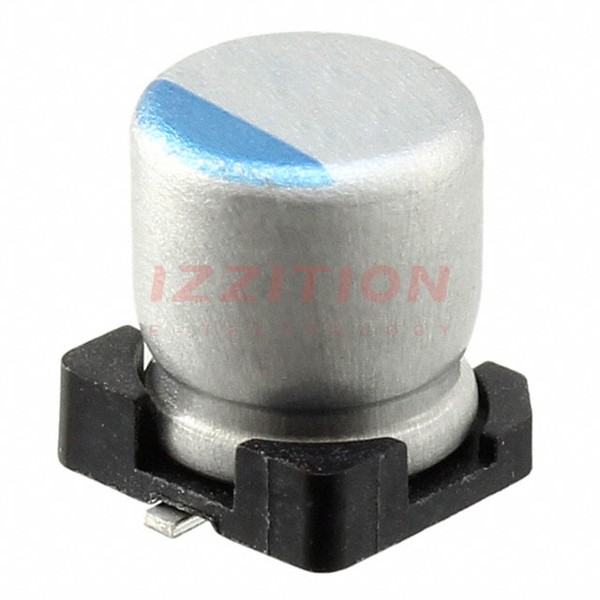

| Part Number | PCR1A121MCL1GS | PCS1A121MCL1GS | PCR1H121MCL1GS | PCR1A122MCL1GS | PCR1A181MCL1GS | PCR1C121MCL1GS | PCJ1A121MCL1GS |
|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete | Obsolete | Active |
| Type | Polymer | Polymer | Polymer | Polymer | Polymer | Polymer | Polymer |
| Capacitance | 120 µF | 120 µF | 120 µF | 1200 µF | 180 µF | 120 µF | 120 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 10 V | 10 V | 50 V | 10 V | 10 V | 16 V | 10 V |
| ESR (Equivalent Series Resistance) | 60mOhm | 27mOhm | 25mOhm | 17mOhm | 34mOhm | 36mOhm | 25mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C | 5000 Hrs @ 105°C | 4000 Hrs @ 125°C | 4000 Hrs @ 125°C | 4000 Hrs @ 125°C | 4000 Hrs @ 125°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 105°C |
| Ratings | AEC-Q200 | - | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | - |
| Applications | Automotive | General Purpose | Automotive | Automotive | Automotive | Automotive | General Purpose |
| Features | - | - | - | - | - | - | - |
| Ripple Current @ Low Frequency | - | - | - | - | - | - | - |
| Ripple Current @ High Frequency | 800 mA @ 100 kHz | 2.3 A @ 100 kHz | 3 A @ 100 kHz | 3.4 A @ 100 kHz | 1.4 A @ 100 kHz | 1.3 A @ 100 kHz | 2.53 A @ 100 kHz |
| Impedance | - | - | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - | - | - |
| Size / Dimension | 0.197" Dia (5.00mm) | 0.248" Dia (6.30mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) | 0.236" (6.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.240" (6.10mm) | 0.240" (6.10mm) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
