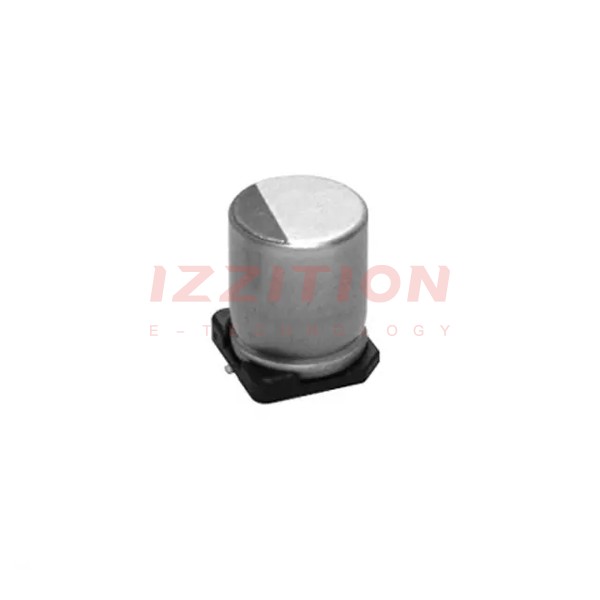

Nichicon PCG1C681MCL1GS

Manufacturer No:
PCG1C681MCL1GS
Manufacturer:
Nichicon
Package:
Tape & Reel (TR)
Datasheet:
PCG1C681MCL1GS Datasheet
ECAD Model:
-
Description:
CAP ALUM POLY 680UF 20% 16V SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Polymer
Capacitance:680 µF
Tolerance:±20%
Voltage - Rated:16 V
ESR (Equivalent Series Resistance):18mOhm
Lifetime @ Temp.:2000 Hrs @ 105°C
Operating Temperature:-55°C ~ 105°C
Ratings:-
Applications:General Purpose
Features:-
Ripple Current @ Low Frequency:-
Ripple Current @ High Frequency:4.1 A @ 100 kHz
Impedance:-
Lead Spacing:-
Size / Dimension:0.394" Dia (10.00mm)
Height - Seated (Max):0.500" (12.70mm)
Surface Mount Land Size:0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type:Surface Mount
Package / Case:Radial, Can - SMD
0 Remaining View Similar

In Stock

$2.31
55

Please send RFQ , we will respond immediately.
