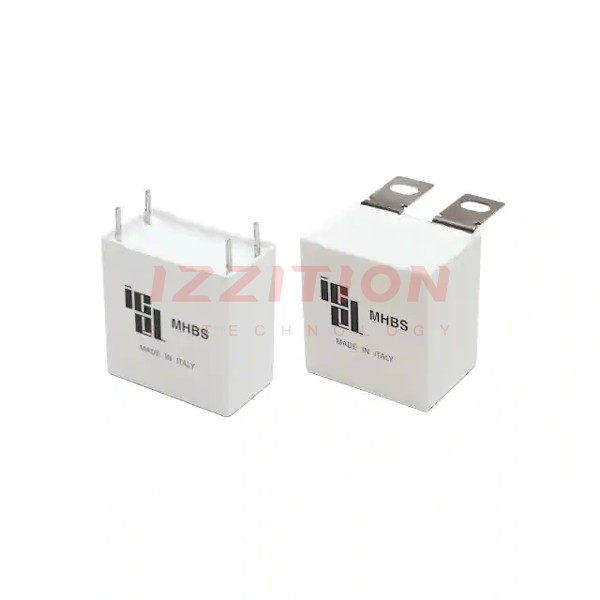

Nichicon-MHBS704470KJSD - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	4.7 µF
Tolerance:	±10%
Voltage Rating - AC:	440V
Voltage Rating - DC:	1275V (1.275kV)
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	7.3 mOhms
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Through Hole
Package / Case:	Radial - 4 Leads
Size / Dimension:	1.673" L x 0.866" W (42.50mm x 22.00mm)
Height - Seated (Max):	1.319" (33.50mm)
Termination:	PC Pins
Lead Spacing:	1.476" (37.50mm)
Applications:	DC Link, DC Filtering; High Frequency, Switching
Ratings:	-
Features:	-

Nichicon MHBS704470KJSD
