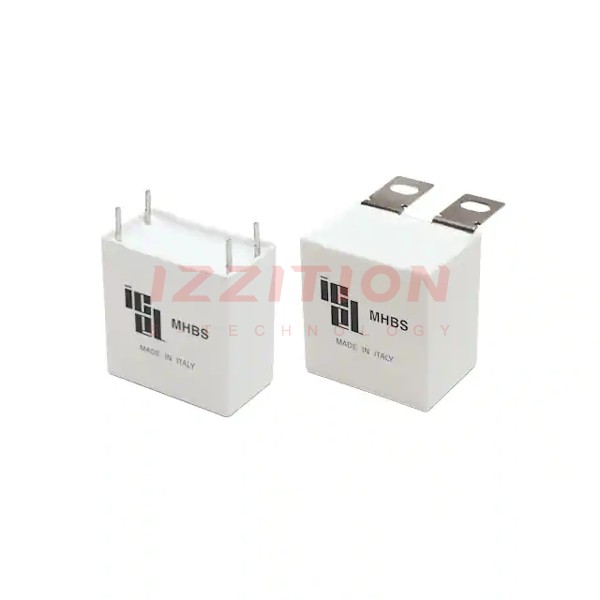

Nichicon-MHBS555120KJLA - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	12 µF
Tolerance:	±10%
Voltage Rating - AC:	400V
Voltage Rating - DC:	1000V (1kV)
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	5.7 mOhms
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	1.673" L x 1.102" W (42.50mm x 28.00mm)
Height - Seated (Max):	1.457" (37.00mm)
Termination:	PC Pins
Lead Spacing:	1.476" (37.50mm)
Applications:	DC Link, DC Filtering; High Frequency, Switching
Ratings:	-
Features:	-

Nichicon MHBS555120KJLA
