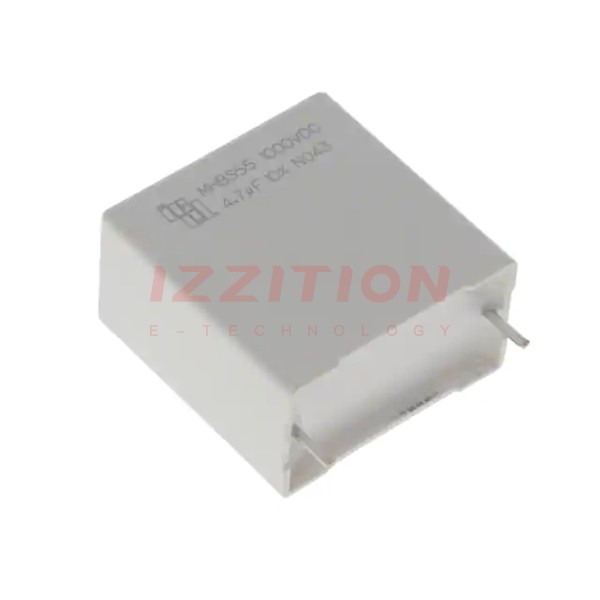

| Part Number | MHBS554470KHS | MHBS554470KHL |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Active |
| Capacitance | 4.7 µF | 4.7 µF |
| Tolerance | ±10% | ±10% |
| Voltage Rating - AC | 400V | 400V |
| Voltage Rating - DC | 1000V (1kV) | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 8.3 mOhms | 8.3 mOhms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 1.260" L x 0.709" W (32.00mm x 18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) | 1.299" (33.00mm) |
| Termination | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 1.083" (27.50mm) |
| Applications | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | DC Link, DC Filtering; High Frequency, Switching |
| Ratings | - | - |
| Features | - | - |
