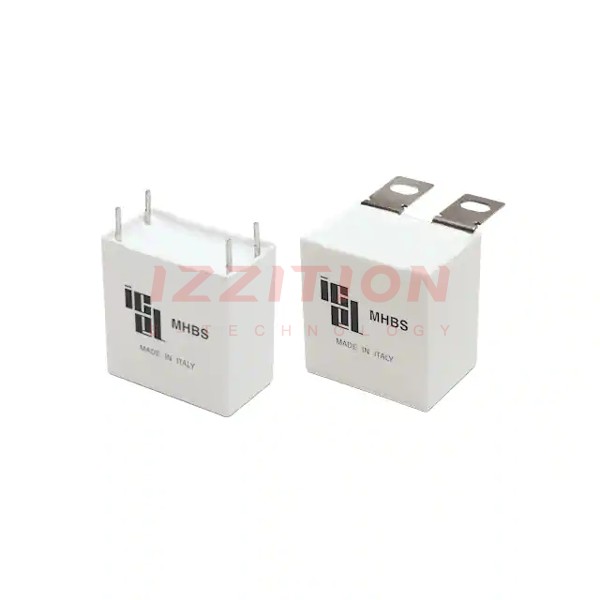

Nichicon-MHBS554120KHL - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	1.2 µF
Tolerance:	±10%
Voltage Rating - AC:	400V
Voltage Rating - DC:	1000V (1kV)
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	20.5 mOhms
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	1.260" L x 0.433" W (32.00mm x 11.00mm)
Height - Seated (Max):	0.787" (20.00mm)
Termination:	PC Pins
Lead Spacing:	1.083" (27.50mm)
Applications:	DC Link, DC Filtering; High Frequency, Switching
Ratings:	-
Features:	-

Nichicon MHBS554120KHL
