Please send RFQ , we will respond immediately.

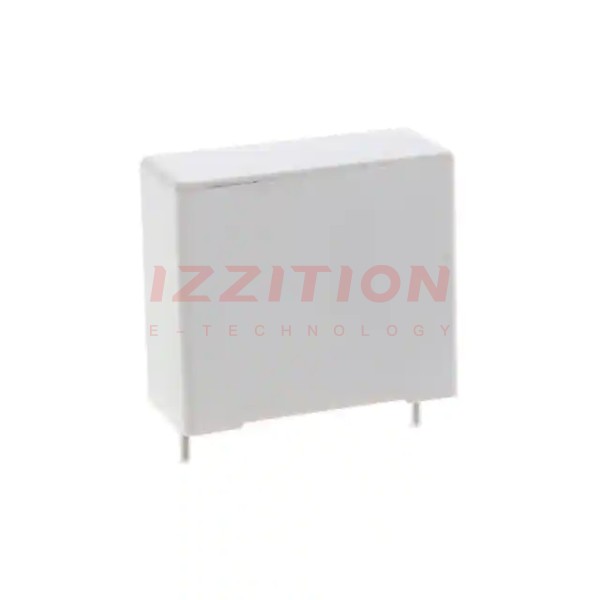

| Part Number | MHBS454500KHS | MHBS554500KHS | MHBS454500KJS | MHBS354500KHS | MHBS454200KHS | MHBS454300KHS |
|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 5 µF | 5 µF | 5 µF | 5 µF | 2 µF | 3 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 315V | 400V | 315V | 240V | 315V | 315V |
| Voltage Rating - DC | 800V | 1000V (1kV) | 800V | 575V | 800V | 800V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 9.4 mOhms | 8 mOhms | 10.3 mOhms | 11 mOhms | 16.7 mOhms | 12.4 mOhms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.673" L x 0.551" W (42.50mm x 14.00mm) | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 1.260" L x 0.512" W (32.00mm x 13.00mm) |
| Height - Seated (Max) | 1.102" (28.00mm) | 1.299" (33.00mm) | 0.984" (25.00mm) | 0.866" (22.00mm) | 0.787" (20.00mm) | 0.866" (22.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.476" (37.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) |
| Applications | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | DC Link, DC Filtering; High Frequency, Switching | DC Link, DC Filtering; High Frequency, Switching | DC Link, DC Filtering; High Frequency, Switching | DC Link, DC Filtering; High Frequency, Switching | DC Link, DC Filtering; High Frequency, Switching |
| Ratings | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
