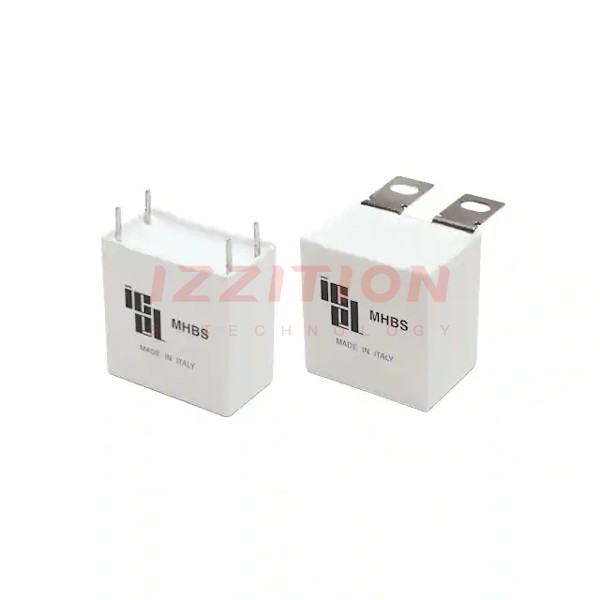

Nichicon-MHBS405800KRST - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	80 µF
Tolerance:	±10%
Voltage Rating - AC:	285V
Voltage Rating - DC:	700V
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	2.6 mOhms
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Through Hole
Package / Case:	Radial - 6 Leads
Size / Dimension:	2.264" L x 1.496" W (57.50mm x 38.00mm)
Height - Seated (Max):	2.264" (57.50mm)
Termination:	PC Pins
Lead Spacing:	2.067" (52.50mm)
Applications:	DC Link, DC Filtering; High Frequency, Switching
Ratings:	-
Features:	-

Nichicon MHBS405800KRST
