Nichicon-MHBS404500KHL - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	5 µF
Tolerance:	±10%
Voltage Rating - AC:	285V
Voltage Rating - DC:	700V
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	9.7 mOhms
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	1.260" L x 0.591" W (32.00mm x 15.00mm)
Height - Seated (Max):	0.965" (24.50mm)
Termination:	PC Pins
Lead Spacing:	1.083" (27.50mm)
Applications:	DC Link, DC Filtering; High Frequency, Switching
Ratings:	-
Features:	-

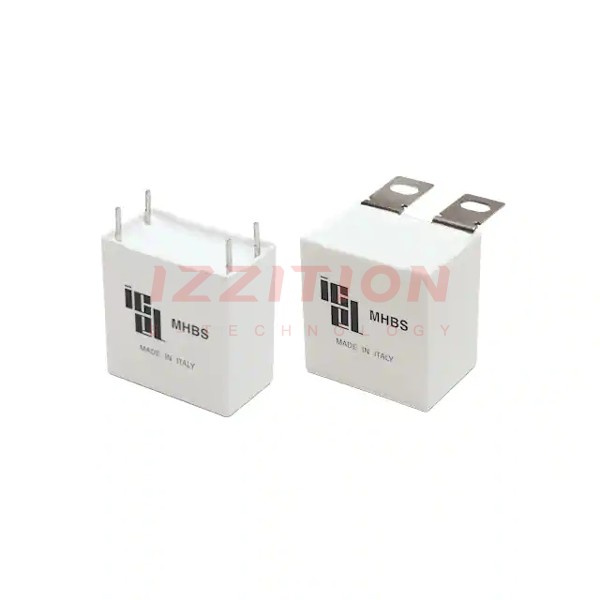

Nichicon MHBS404500KHL
