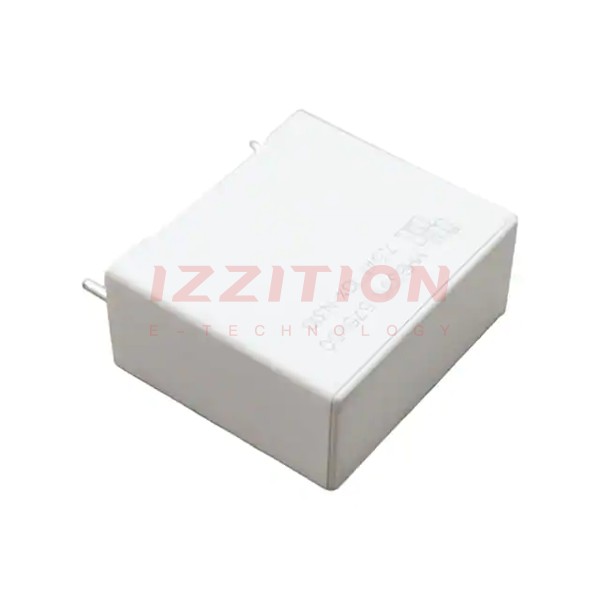

| Part Number | MHBS354750KHS | MHBS454750KHS | MHBS354750KHL |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Capacitance | 7.5 µF | 7.5 µF | 7.5 µF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 240V | 315V | 240V |
| Voltage Rating - DC | 575V | 800V | 575V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 8.6 mOhms | 7.1 mOhms | 8.6 mOhms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.260" L x 0.551" W (32.00mm x 14.00mm) |
| Height - Seated (Max) | 1.102" (28.00mm) | 1.299" (33.00mm) | 1.102" (28.00mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) |
| Applications | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | DC Link, DC Filtering; High Frequency, Switching | DC Link, DC Filtering; High Frequency, Switching |
| Ratings | - | - | - |
| Features | - | - | - |
