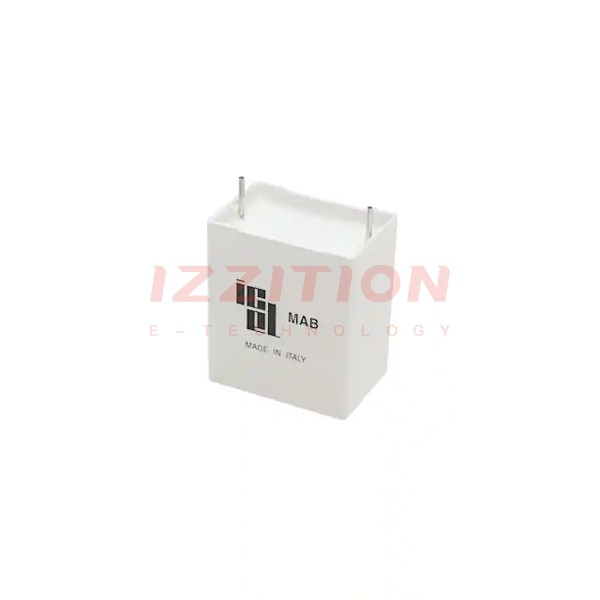

| Part Number | MABA013100KGS | MABA013150KGS | MABA013120KGS | MABA013180KGS |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active |
| Capacitance | 0.1 µF | 0.15 µF | 0.12 µF | 0.18 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | 400V | 400V |
| Voltage Rating - DC | 800V | 800V | 800V | 800V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 1.043" L x 0.394" W (26.50mm x 10.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) | 0.669" (17.00mm) | 0.630" (16.00mm) | 0.728" (18.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) |
| Applications | Motor Run | Motor Run | Motor Run | Motor Run |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
