Nichicon-LQS2W221MELC25 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	220 µF
Tolerance:	±20%
Voltage - Rated:	450 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	3000 Hrs @ 105°C
Operating Temperature:	-25°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	1.05 A @ 120 Hz
Ripple Current @ High Frequency:	-
Impedance:	-
Lead Spacing:	0.394" (10.00mm)
Size / Dimension:	1.378" Dia (35.00mm)
Height - Seated (Max):	1.063" (27.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can - Snap-In

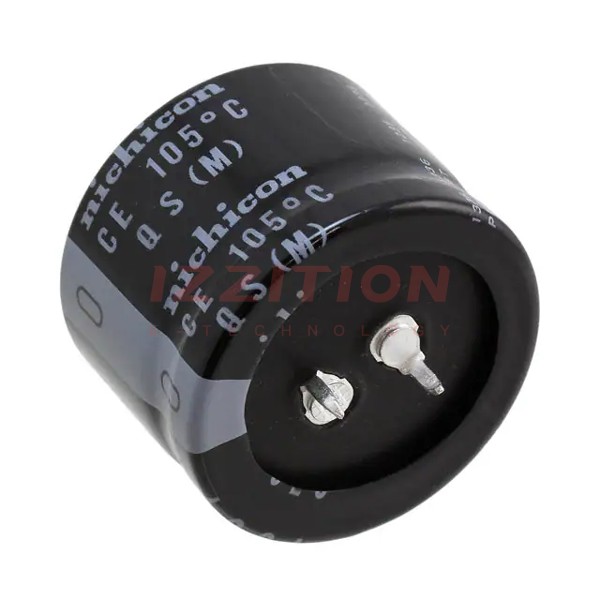

Nichicon LQS2W221MELC25
