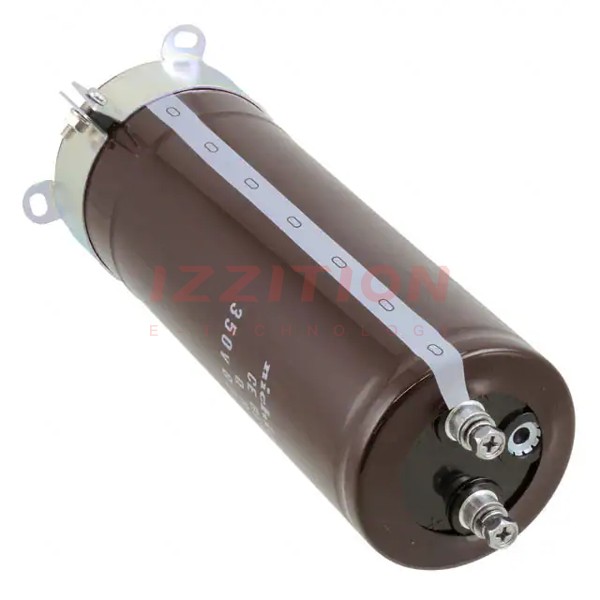

| Part Number | LQR2V822MSEG | LQR2V822MSEH |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Active |
| Capacitance | 8200 µF | 8200 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 350 V | 350 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 27.1 A @ 120 Hz | 26.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 37.94 A @ 10 kHz | 36.96 A @ 10 kHz |
| Impedance | - | - |
| Lead Spacing | 1.126" (28.60mm) | 1.252" (31.80mm) |
| Size / Dimension | 2.500" Dia (63.50mm) | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 7.598" (193.00mm) | 6.024" (153.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
