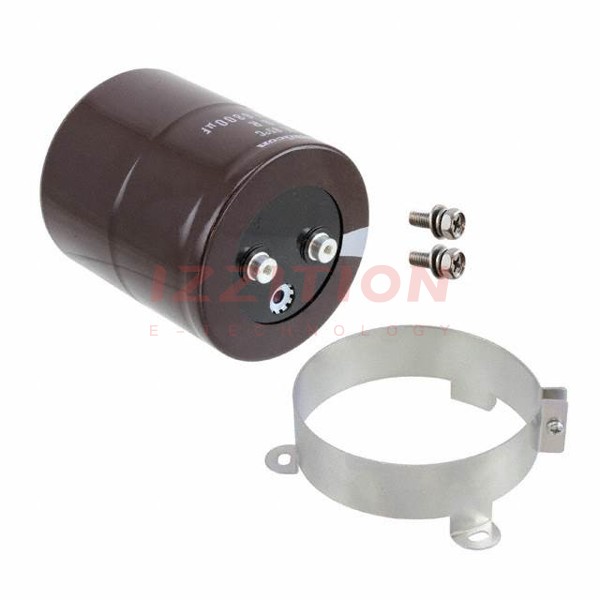

| Part Number | LQR2V682MSEJ | LQR2V682MSEG | LQR2V682MSEH |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Capacitance | 6800 µF | 6800 µF | 6800 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 350 V | 350 V | 350 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 22.5 A @ 120 Hz | 23.5 A @ 120 Hz | 22.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 31.5 A @ 10 kHz | 32.9 A @ 10 kHz | 32.06 A @ 10 kHz |
| Impedance | - | - | - |
| Lead Spacing | 1.252" (31.80mm) | 1.126" (28.60mm) | 1.252" (31.80mm) |
| Size / Dimension | 3.543" Dia (90.00mm) | 2.500" Dia (63.50mm) | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 4.055" (103.00mm) | 6.811" (173.00mm) | 5.236" (133.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
