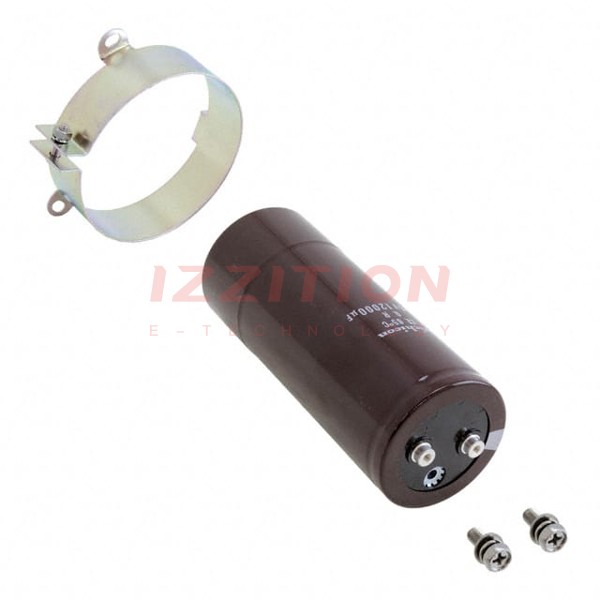

| Part Number | LQR2V123MSEH | LQR2V103MSEH |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Active |
| Capacitance | 12000 µF | 10000 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 350 V | 350 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 35.7 A @ 120 Hz | 31.1 A @ 120 Hz |
| Ripple Current @ High Frequency | - | 43.54 A @ 10 kHz |
| Impedance | - | - |
| Lead Spacing | 1.252" (31.80mm) | 1.252" (31.80mm) |
| Size / Dimension | 3.000" Dia (76.20mm) | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 7.598" (193.00mm) | 6.811" (173.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
