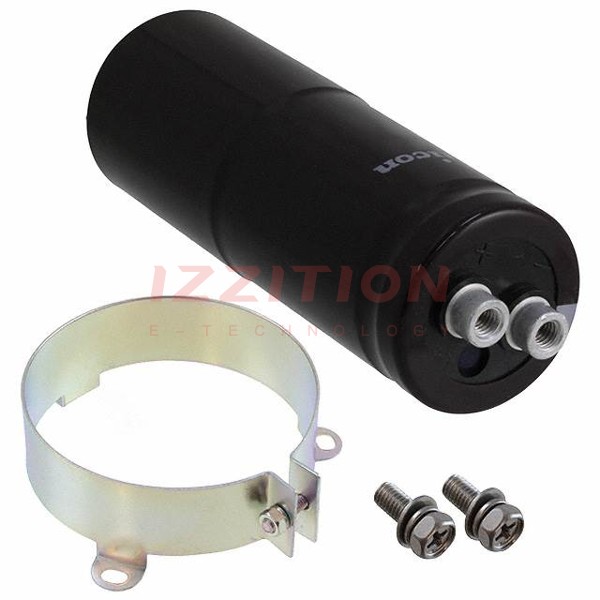

Nichicon-LQR2V102MSEC - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	1000 µF
Tolerance:	±20%
Voltage - Rated:	350 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	5000 Hrs @ 85°C
Operating Temperature:	-25°C ~ 85°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	4.3 A @ 120 Hz
Ripple Current @ High Frequency:	6.02 A @ 10 kHz
Impedance:	-
Lead Spacing:	0.500" (12.70mm)
Size / Dimension:	1.378" Dia (35.00mm)
Height - Seated (Max):	4.055" (103.00mm)
Surface Mount Land Size:	-
Mounting Type:	Chassis Mount
Package / Case:	Radial, Can - Screw Terminals

Nichicon LQR2V102MSEC
