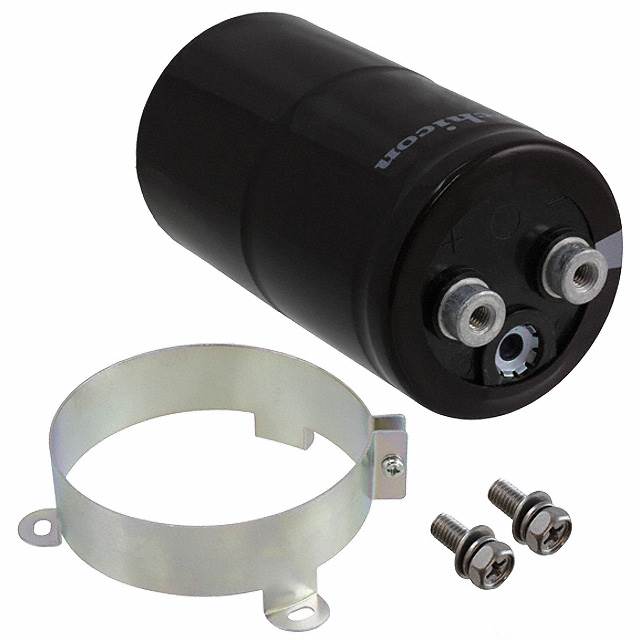

| Part Number | LQR2G182MSEF | LQR2W182MSEF | LQR2V182MSEF | LQR2G152MSEF |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active |
| Capacitance | 1800 µF | 1800 µF | 1800 µF | 1500 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 400 V | 450 V | 350 V | 400 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 9.1 A @ 120 Hz | 7.4 A @ 120 Hz | 7.2 A @ 120 Hz | 7.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 12.74 A @ 10 kHz | 10.36 A @ 10 kHz | 10.08 A @ 10 kHz | 10.5 A @ 10 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | 0.866" (22.00mm) | 0.866" (22.00mm) | 0.866" (22.00mm) | 0.866" (22.00mm) |
| Size / Dimension | 2.008" Dia (51.00mm) | 2.008" Dia (51.00mm) | 2.008" Dia (51.00mm) | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 3.661" (93.00mm) | 4.449" (113.00mm) | 3.268" (83.00mm) | 3.268" (83.00mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
