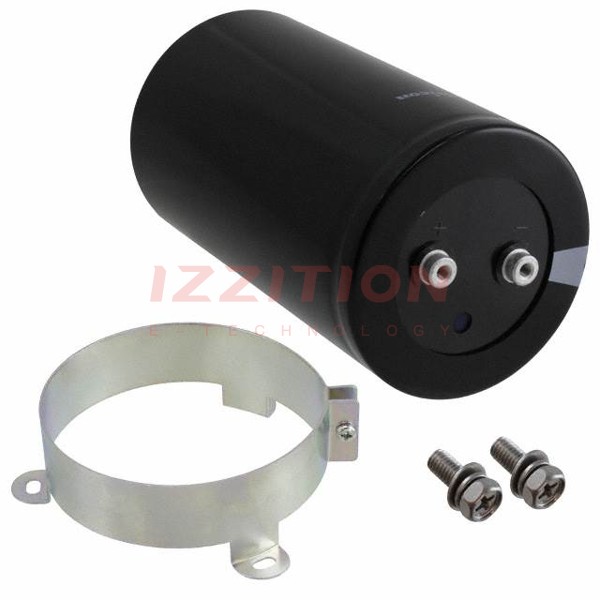

| Part Number | LNY2W103MSEJ | LNY2W153MSEJ | LNY2W123MSEJ | LNX2W103MSEJ | LNY2G103MSEJ | LNY2V103MSEJ | LNY2W103MSEH |
|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 10000 µF | 15000 µF | 12000 µF | 10000 µF | 10000 µF | 10000 µF | 10000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 450 V | 450 V | 450 V | 450 V | 400 V | 350 V | 450 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 20000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -25°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 22.9 A @ 120 Hz | 29.6 A @ 120 Hz | 26 A @ 120 Hz | 29.6 A @ 120 Hz | 22 A @ 120 Hz | 23.5 A @ 120 Hz | 23 A @ 120 Hz |
| Ripple Current @ High Frequency | 32.06 A @ 10 kHz | 41.44 A @ 10 kHz | 36.4 A @ 10 kHz | 41.44 A @ 10 kHz | 30.8 A @ 10 kHz | 32.9 A @ 10 kHz | 32.2 A @ 10 kHz |
| Impedance | - | - | - | - | - | - | - |
| Lead Spacing | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) |
| Size / Dimension | 3.543" Dia (90.00mm) | 3.543" Dia (90.00mm) | 3.543" Dia (90.00mm) | 3.543" Dia (90.00mm) | 3.543" Dia (90.00mm) | 3.543" Dia (90.00mm) | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 6.102" (155.00mm) | 8.661" (220.00mm) | 7.480" (190.00mm) | 7.598" (193.00mm) | 5.118" (130.00mm) | 3.740" (95.00mm) | 8.268" (210.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
