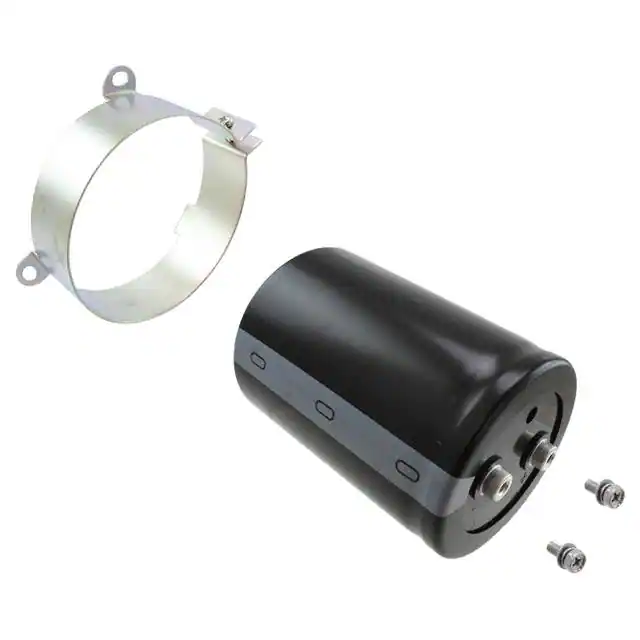

| Part Number | LNY2V822MSEH | LNY2W822MSEH | LNX2V822MSEH | LNY2G822MSEH | LNY2V822MSEG |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 8200 µF | 8200 µF | 8200 µF | 8200 µF | 8200 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 350 V | 450 V | 350 V | 400 V | 350 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 20000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -25°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 20.2 A @ 120 Hz | 20.1 A @ 120 Hz | 22 A @ 120 Hz | 21.2 A @ 120 Hz | 20.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 28.28 A @ 10 kHz | 28.14 A @ 10 kHz | 35.2 A @ 10 kHz | 29.68 A @ 10 kHz | 28.84 A @ 10 kHz |
| Impedance | - | - | - | - | - |
| Lead Spacing | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.126" (28.60mm) |
| Size / Dimension | 3.000" Dia (76.20mm) | 3.000" Dia (76.20mm) | 3.000" Dia (76.20mm) | 3.000" Dia (76.20mm) | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 4.134" (105.00mm) | 6.693" (170.00mm) | 6.024" (153.00mm) | 5.906" (150.00mm) | 5.709" (145.00mm) |
| Surface Mount Land Size | - | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
