Please send RFQ , we will respond immediately.

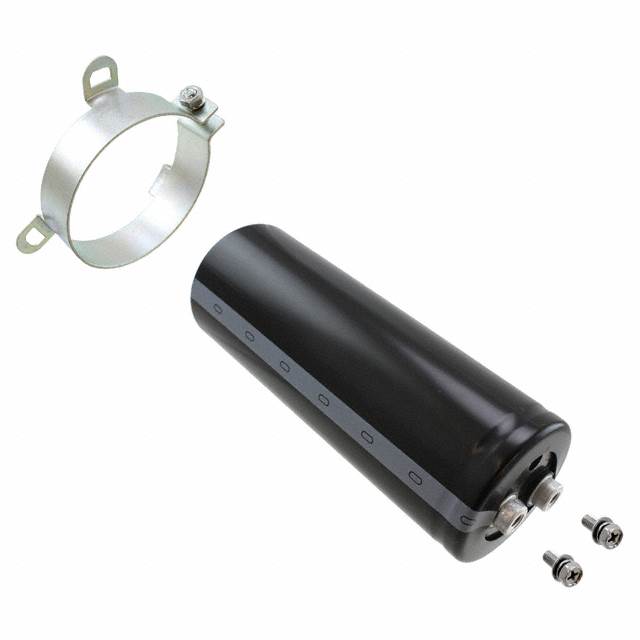

| Part Number | LNY2V472MSEF | LNY2V472MSEG | LNY2V272MSEF |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Capacitance | 4700 µF | 4700 µF | 2700 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 350 V | 350 V | 350 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 15.9 A @ 120 Hz | 15.8 A @ 120 Hz | 12.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 22.26 A @ 10 kHz | 22.12 A @ 10 kHz | 17.08 A @ 10 kHz |
| Impedance | - | - | - |
| Lead Spacing | 0.866" (22.00mm) | 1.126" (28.60mm) | 0.866" (22.00mm) |
| Size / Dimension | 2.008" Dia (51.00mm) | 2.500" Dia (63.50mm) | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 5.512" (140.00mm) | 3.543" (90.00mm) | 3.543" (90.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
