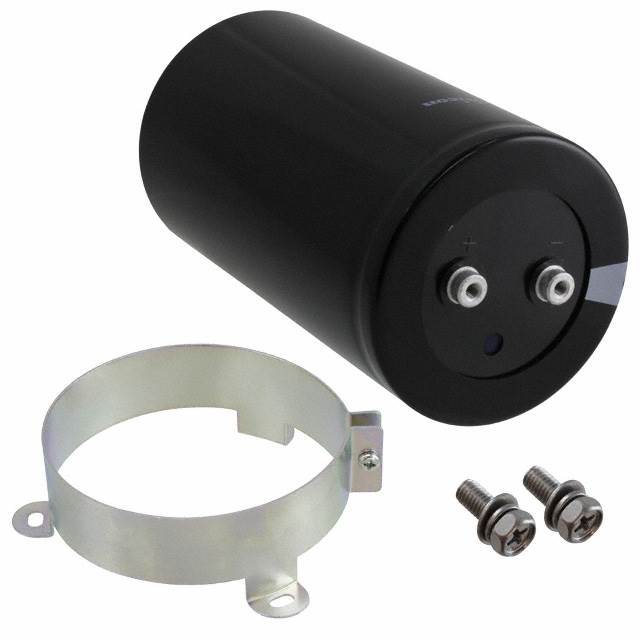

| Part Number | LNY2V183MSEJ | LNX2V183MSEJ | LNY2G183MSEJ | LNY2V103MSEJ | LNY2V123MSEJ | LNY2V153MSEJ | LNY2V183MSEH |
|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 18000 µF | 18000 µF | 18000 µF | 10000 µF | 12000 µF | 15000 µF | 18000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 350 V | 350 V | 400 V | 350 V | 350 V | 350 V | 350 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 20000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -25°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 31.1 A @ 120 Hz | 39.7 A @ 120 Hz | 30.6 A @ 120 Hz | 23.5 A @ 120 Hz | 24.1 A @ 120 Hz | 29.2 A @ 120 Hz | 30.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 43.54 A @ 10 kHz | 55.58 A @ 10 kHz | 42.84 A @ 10 kHz | 32.9 A @ 10 kHz | 33.74 A @ 10 kHz | 40.88 A @ 10 kHz | 42.28 A @ 10 kHz |
| Impedance | - | - | - | - | - | - | - |
| Lead Spacing | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) |
| Size / Dimension | 3.543" Dia (90.00mm) | 3.543" Dia (90.00mm) | 3.543" Dia (90.00mm) | 3.543" Dia (90.00mm) | 3.543" Dia (90.00mm) | 3.543" Dia (90.00mm) | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 6.102" (155.00mm) | 8.780" (223.00mm) | 9.055" (230.00mm) | 3.740" (95.00mm) | 4.331" (110.00mm) | 5.512" (140.00mm) | 8.268" (210.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
