Please send RFQ , we will respond immediately.

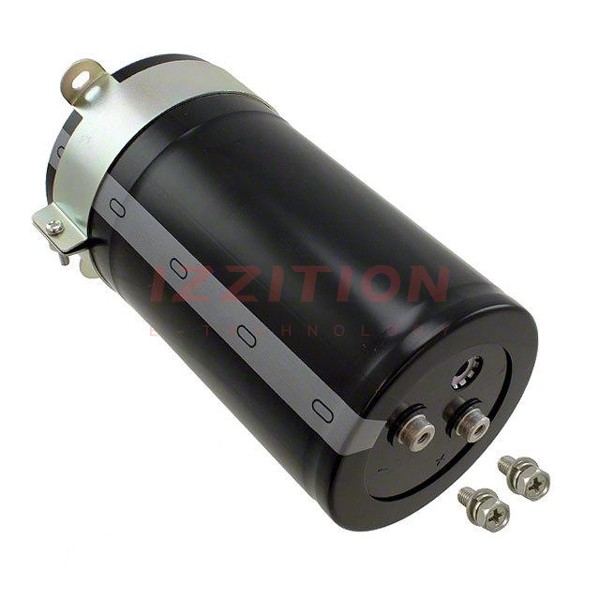

| Part Number | LNX2W822MSEJ | LNY2W822MSEJ | LNX2G822MSEJ | LNX2H822MSEJ | LNX2V822MSEJ | LNX2W822MSEH |
|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 8200 µF | 8200 µF | 8200 µF | 8200 µF | 8200 µF | 8200 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 450 V | 450 V | 400 V | 500 V | 350 V | 450 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Lifetime @ Temp. | 20000 Hrs @ 85°C | 2000 Hrs @ 85°C | 20000 Hrs @ 85°C | 5000 Hrs @ 85°C | 20000 Hrs @ 85°C | 20000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C | -40°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 25.4 A @ 120 Hz | 20.1 A @ 120 Hz | 23.7 A @ 120 Hz | 21.4 A @ 120 Hz | 21.4 A @ 120 Hz | 25.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 35.56 A @ 10 kHz | 28.14 A @ 10 kHz | 33.18 A @ 10 kHz | - | 32.1 A @ 10 kHz | 35.98 A @ 10 kHz |
| Impedance | - | - | - | - | - | - |
| Lead Spacing | 0.500" (12.70mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) |
| Size / Dimension | 3.543" Dia (90.00mm) | 3.543" Dia (90.00mm) | 3.543" Dia (90.00mm) | 3.543" Dia (90.00mm) | 3.543" Dia (90.00mm) | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 6.693" (170.00mm) | 5.118" (130.00mm) | 6.024" (153.00mm) | 7.598" (193.00mm) | 5.236" (133.00mm) | 8.780" (223.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
