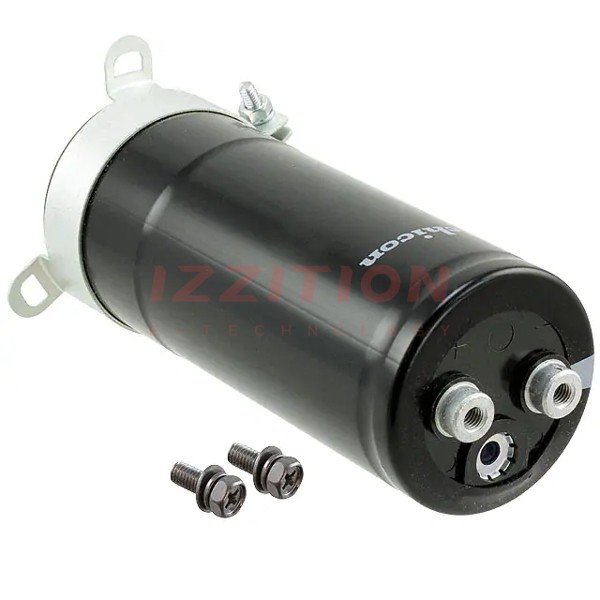

| Part Number | LNX2W182MSEF | LNY2W182MSEF | LNX2W182MSEG | LNX2G182MSEF | LNX2V182MSEF | LNX2W102MSEF | LNX2W122MSEF | LNX2W152MSEF |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 1800 µF | 1800 µF | 1800 µF | 1800 µF | 1800 µF | 1000 µF | 1200 µF | 1500 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 450 V | 450 V | 450 V | 400 V | 350 V | 450 V | 450 V | 450 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 20000 Hrs @ 85°C | 2000 Hrs @ 85°C | 20000 Hrs @ 85°C | 20000 Hrs @ 85°C | 20000 Hrs @ 85°C | 20000 Hrs @ 85°C | 20000 Hrs @ 85°C | 20000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C | -40°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 8.7 A @ 120 Hz | 7.9 A @ 120 Hz | 7.6 A @ 120 Hz | 8.2 A @ 120 Hz | 7.3 A @ 120 Hz | 5.2 A @ 120 Hz | 6.3 A @ 120 Hz | 7.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 12.18 A @ 10 kHz | 11.06 A @ 10 kHz | 10.64 A @ 10 kHz | 11.48 A @ 10 kHz | 10.22 A @ 10 kHz | 7.28 A @ 10 kHz | 8.82 A @ 10 kHz | 10.22 A @ 10 kHz |
| Impedance | - | - | - | - | - | - | - | - |
| Lead Spacing | 0.866" (22.00mm) | 0.866" (22.00mm) | 1.126" (28.60mm) | 0.866" (22.00mm) | 0.866" (22.00mm) | 0.866" (22.00mm) | 0.866" (22.00mm) | 0.866" (22.00mm) |
| Size / Dimension | 2.008" Dia (51.00mm) | 2.008" Dia (51.00mm) | 2.500" Dia (63.50mm) | 2.008" Dia (51.00mm) | 2.008" Dia (51.00mm) | 2.008" Dia (51.00mm) | 2.008" Dia (51.00mm) | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 5.236" (133.00mm) | 3.740" (95.00mm) | 3.661" (93.00mm) | 4.449" (113.00mm) | 3.661" (93.00mm) | 3.268" (83.00mm) | 4.055" (103.00mm) | 4.449" (113.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
