Please send RFQ , we will respond immediately.

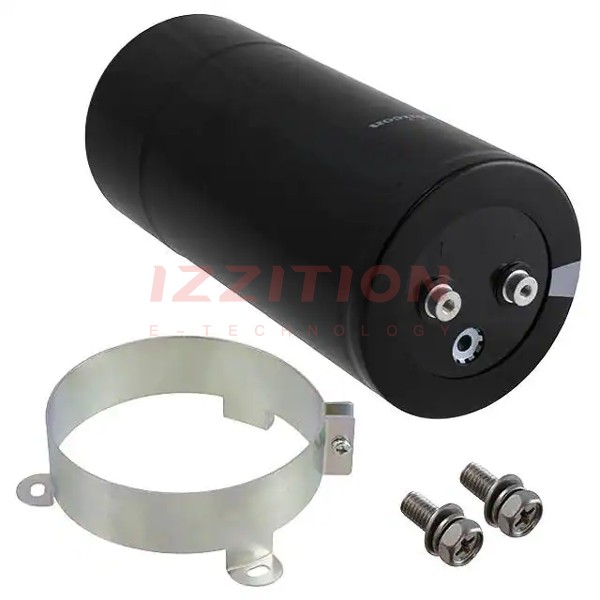

| Part Number | LNX2V153MSEJ | LNX2V183MSEJ | LNY2V153MSEJ | LNX2V103MSEJ | LNX2V123MSEJ |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 15000 µF | 18000 µF | 15000 µF | 10000 µF | 12000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 350 V | 350 V | 350 V | 350 V | 350 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Lifetime @ Temp. | 20000 Hrs @ 85°C | 20000 Hrs @ 85°C | 2000 Hrs @ 85°C | 20000 Hrs @ 85°C | 20000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -40°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 36 A @ 120 Hz | 39.7 A @ 120 Hz | 29.2 A @ 120 Hz | 21.3 A @ 120 Hz | 28.8 A @ 120 Hz |
| Ripple Current @ High Frequency | - | 55.58 A @ 10 kHz | 40.88 A @ 10 kHz | 29.82 A @ 10 kHz | 40.32 A @ 10 kHz |
| Impedance | - | - | - | - | - |
| Lead Spacing | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) |
| Size / Dimension | 3.543" Dia (90.00mm) | 3.543" Dia (90.00mm) | 3.543" Dia (90.00mm) | 3.543" Dia (90.00mm) | 3.543" Dia (90.00mm) |
| Height - Seated (Max) | 7.598" (193.00mm) | 8.780" (223.00mm) | 5.512" (140.00mm) | 6.024" (153.00mm) | 6.024" (153.00mm) |
| Surface Mount Land Size | - | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
