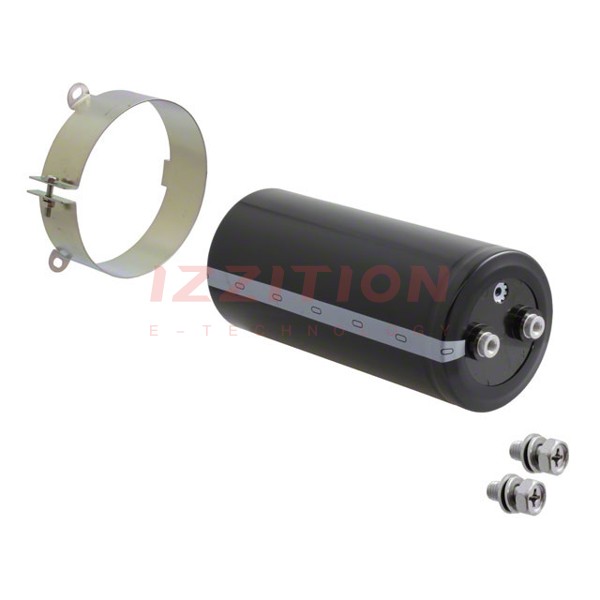

Nichicon-LNX2L822MSEK - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	8200 µF
Tolerance:	±20%
Voltage - Rated:	550 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	5000 Hrs @ 85°C
Operating Temperature:	-25°C ~ 85°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	21.6 A @ 120 Hz
Ripple Current @ High Frequency:	-
Impedance:	-
Lead Spacing:	1.634" (41.50mm)
Size / Dimension:	3.937" Dia (100.00mm)
Height - Seated (Max):	8.780" (223.00mm)
Surface Mount Land Size:	-
Mounting Type:	Chassis Mount
Package / Case:	Radial, Can - Screw Terminals

Nichicon LNX2L822MSEK
