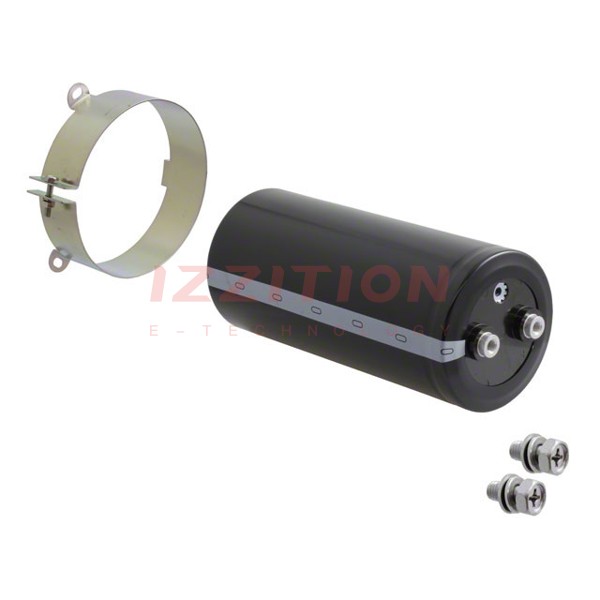

| Part Number | LNX2H123MSEK | LNX2H103MSEK |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Active |
| Capacitance | 12000 µF | 10000 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 500 V | 500 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 27.8 A @ 120 Hz | 23.8 A @ 120 Hz |
| Ripple Current @ High Frequency | - | - |
| Impedance | - | - |
| Lead Spacing | 1.634" (41.50mm) | 1.634" (41.50mm) |
| Size / Dimension | 3.937" Dia (100.00mm) | 3.937" Dia (100.00mm) |
| Height - Seated (Max) | 8.780" (223.00mm) | 7.638" (194.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
