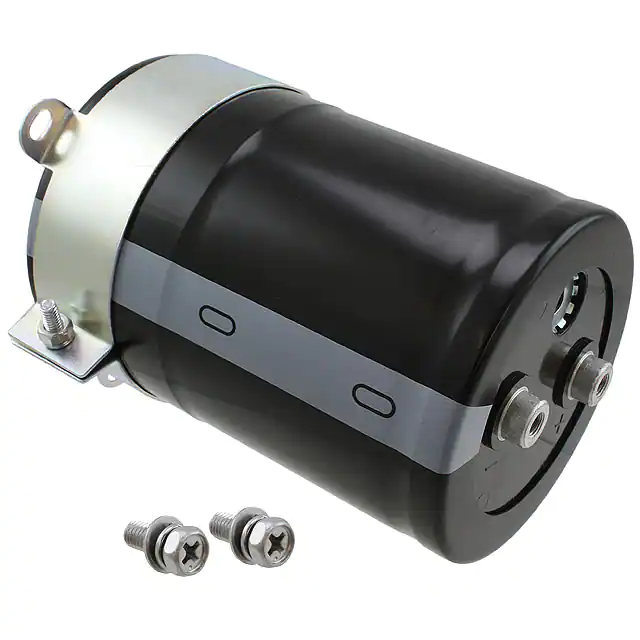

| Part Number | LNX2G472MSEH | LNX2W472MSEH | LNU2G472MSEH | LNX2G272MSEH | LNX2G472MSEG |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 4700 µF | 4700 µF | 4700 µF | 2700 µF | 4700 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 400 V | 450 V | 400 V | 400 V | 400 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Lifetime @ Temp. | 20000 Hrs @ 85°C | 20000 Hrs @ 85°C | 5000 Hrs @ 105°C | 20000 Hrs @ 85°C | 20000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -40°C ~ 105°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 16 A @ 120 Hz | 16.9 A @ 120 Hz | 15.8 A @ 120 Hz | 10.6 A @ 120 Hz | 16.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 22.4 A @ 10 kHz | 23.66 A @ 10 kHz | 22.12 A @ 10 kHz | 14.84 A @ 10 kHz | 23.24 A @ 10 kHz |
| Impedance | - | - | - | - | - |
| Lead Spacing | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.126" (28.60mm) |
| Size / Dimension | 3.000" Dia (76.20mm) | 3.000" Dia (76.20mm) | 3.000" Dia (76.20mm) | 3.000" Dia (76.20mm) | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 5.236" (133.00mm) | 6.024" (153.00mm) | 3.858" (98.00mm) | 3.661" (93.00mm) | 6.811" (173.00mm) |
| Surface Mount Land Size | - | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
