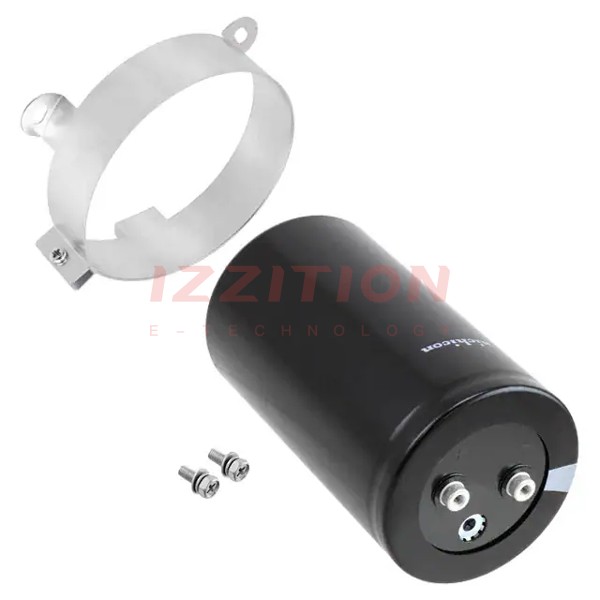

Nichicon-LNUN7562MSEJ - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	5600 µF
Tolerance:	±20%
Voltage - Rated:	525 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	5000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	17.5 A @ 120 Hz
Ripple Current @ High Frequency:	24.5 A @ 10 kHz
Impedance:	-
Lead Spacing:	1.252" (31.80mm)
Size / Dimension:	3.543" Dia (90.00mm)
Height - Seated (Max):	6.220" (158.00mm)
Surface Mount Land Size:	-
Mounting Type:	Chassis Mount
Package / Case:	Radial, Can - Screw Terminals

Nichicon LNUN7562MSEJ
