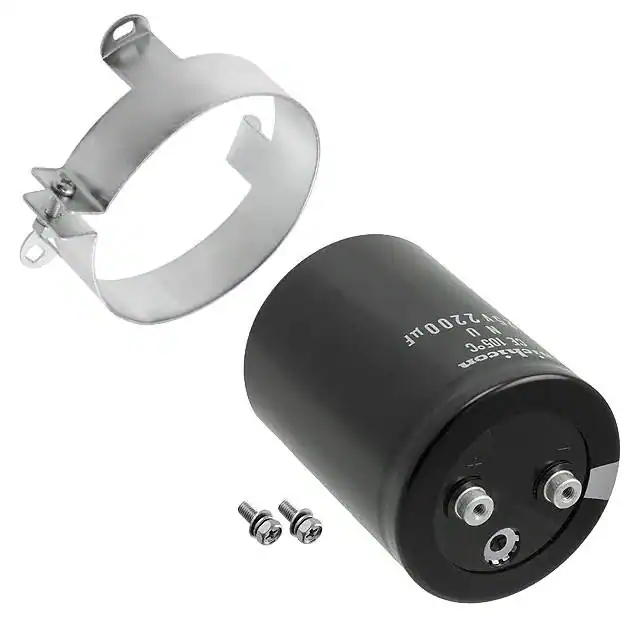

| Part Number | LNUN7222MSEH | LNUN7272MSEH | LNUN7222MSEG |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Capacitance | 2200 µF | 2700 µF | 2200 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 525 V | 525 V | 525 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 9.2 A @ 120 Hz | 10.6 A @ 120 Hz | 9.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 12.88 A @ 10 kHz | 14.84 A @ 10 kHz | 12.88 A @ 10 kHz |
| Impedance | - | - | - |
| Lead Spacing | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.126" (28.60mm) |
| Size / Dimension | 3.000" Dia (76.20mm) | 3.000" Dia (76.20mm) | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 4.055" (103.00mm) | 4.646" (118.00mm) | 5.433" (138.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
