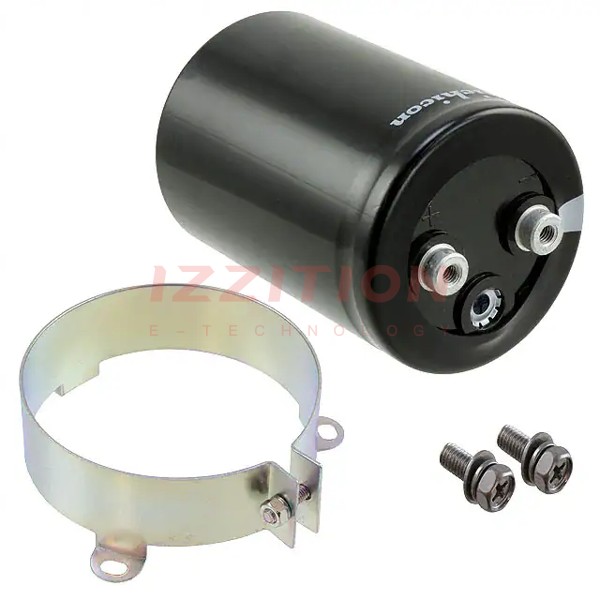

| Part Number | LNU2H152MSEG | LNX2H152MSEG | LNU2H182MSEG | LNT2H152MSEG | LNU2H122MSEG | LNU2H152MSEF |
|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 1500 µF | 1500 µF | 1800 µF | 1500 µF | 1200 µF | 1500 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 500 V | 500 V | 500 V | 500 V | 500 V | 500 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 85°C | 5000 Hrs @ 105°C | 2000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -25°C ~ 85°C | -40°C ~ 105°C | -25°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 6.6 A @ 120 Hz | 5.5 A @ 120 Hz | 7.4 A @ 120 Hz | 7.1 A @ 120 Hz | 5.7 A @ 120 Hz | 6.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 9.24 A @ 10 kHz | - | 10.36 A @ 10 kHz | 9.94 A @ 10 kHz | 7.98 A @ 10 kHz | 9.24 A @ 10 kHz |
| Impedance | - | - | - | - | - | - |
| Lead Spacing | 1.126" (28.60mm) | 1.126" (28.60mm) | 1.126" (28.60mm) | 1.126" (28.60mm) | 1.126" (28.60mm) | 0.866" (22.00mm) |
| Size / Dimension | 2.500" Dia (63.50mm) | 2.500" Dia (63.50mm) | 2.500" Dia (63.50mm) | 2.500" Dia (63.50mm) | 2.500" Dia (63.50mm) | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 3.661" (93.00mm) | 3.661" (93.00mm) | 4.055" (103.00mm) | 4.449" (113.00mm) | 3.268" (83.00mm) | 5.433" (138.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
