Nichicon-LNT2V222MSEF - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	2200 µF
Tolerance:	±20%
Voltage - Rated:	350 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	5000 Hrs @ 105°C
Operating Temperature:	-25°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	11 A @ 120 Hz
Ripple Current @ High Frequency:	15.4 A @ 10 kHz
Impedance:	-
Lead Spacing:	0.866" (22.00mm)
Size / Dimension:	2.008" Dia (51.00mm)
Height - Seated (Max):	4.843" (123.00mm)
Surface Mount Land Size:	-
Mounting Type:	Chassis Mount
Package / Case:	Radial, Can - Screw Terminals

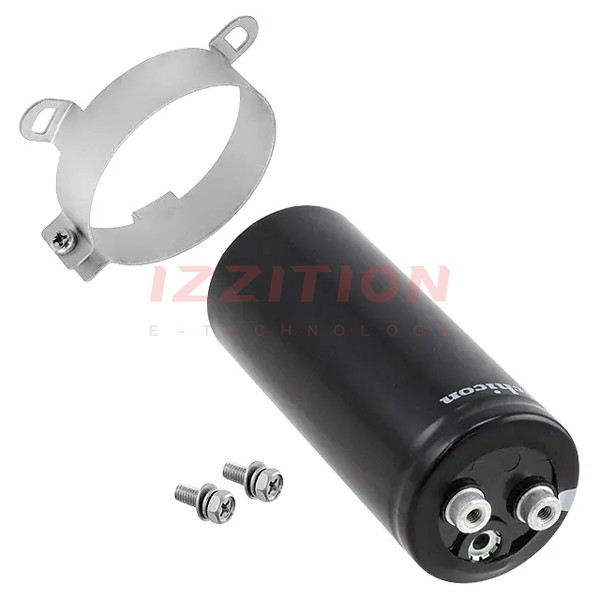

Nichicon LNT2V222MSEF
