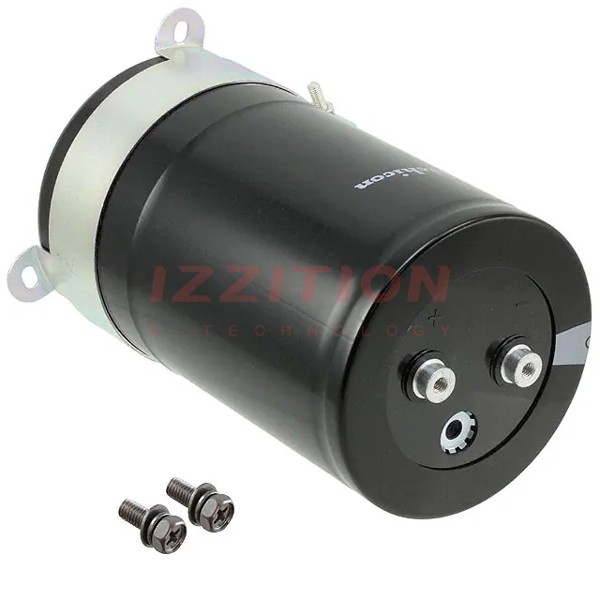

| Part Number | LNT2H472MSEJ | LNU2H472MSEJ | LNT2H472MSEH |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Capacitance | 4700 µF | 4700 µF | 4700 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 500 V | 500 V | 500 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 5000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C | -40°C ~ 105°C | -25°C ~ 105°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 16.3 A @ 120 Hz | 13.9 A @ 120 Hz | 17.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 22.82 A @ 10 kHz | 19.46 A @ 10 kHz | 24.08 A @ 10 kHz |
| Impedance | - | - | - |
| Lead Spacing | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) |
| Size / Dimension | 3.543" Dia (90.00mm) | 3.543" Dia (90.00mm) | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 6.024" (153.00mm) | 5.000" (127.00mm) | 7.598" (193.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
