Please send RFQ , we will respond immediately.

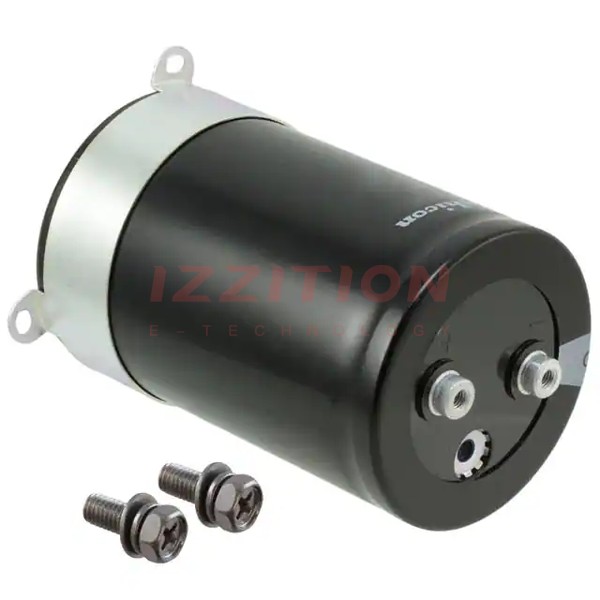

| Part Number | LNT1K473MSE | LNT1V473MSE | LNT1A473MSE | LNT1C473MSE | LNT1E473MSE | LNT1H473MSE | LNT1J473MSE | LNT1K472MSE |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 47000 µF | 47000 µF | 47000 µF | 47000 µF | 47000 µF | 47000 µF | 47000 µF | 4700 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 80 V | 35 V | 10 V | 16 V | 25 V | 50 V | 63 V | 80 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 13.4 A @ 120 Hz | 8.4 A @ 120 Hz | 6.2 A @ 120 Hz | 6.8 A @ 120 Hz | 8.3 A @ 120 Hz | 9.9 A @ 120 Hz | 11.2 A @ 120 Hz | 3.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 15.41 A @ 10 kHz | 9.66 A @ 10 kHz | 7.13 A @ 10 kHz | 7.82 A @ 10 kHz | 9.545 A @ 10 kHz | 11.385 A @ 10 kHz | 12.88 A @ 10 kHz | 4.025 A @ 10 kHz |
| Impedance | - | - | - | - | - | - | - | - |
| Lead Spacing | 1.252" (31.80mm) | 0.866" (22.00mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.866" (22.00mm) | 1.126" (28.60mm) | 1.126" (28.60mm) | 0.500" (12.70mm) |
| Size / Dimension | 3.000" Dia (76.20mm) | 2.008" Dia (51.00mm) | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) | 2.008" Dia (51.00mm) | 2.500" Dia (63.50mm) | 2.500" Dia (63.50mm) | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 4.843" (123.00mm) | 4.055" (103.00mm) | 4.055" (103.00mm) | 4.055" (103.00mm) | 3.268" (83.00mm) | 4.055" (103.00mm) | 4.843" (123.00mm) | 3.268" (83.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
