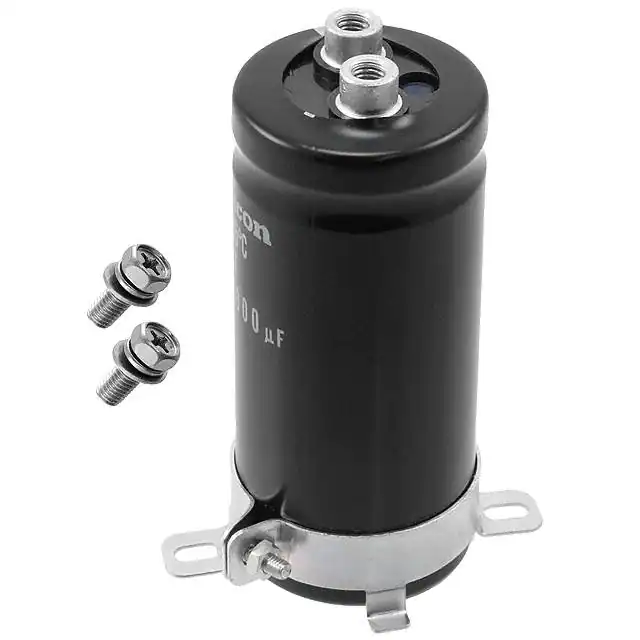

| Part Number | LNT1K472MSE | LNT1K473MSE |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Active |
| Capacitance | 4700 µF | 47000 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 80 V | 80 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 3.5 A @ 120 Hz | 13.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.025 A @ 10 kHz | 15.41 A @ 10 kHz |
| Impedance | - | - |
| Lead Spacing | 0.500" (12.70mm) | 1.252" (31.80mm) |
| Size / Dimension | 1.378" Dia (35.00mm) | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 3.268" (83.00mm) | 4.843" (123.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
