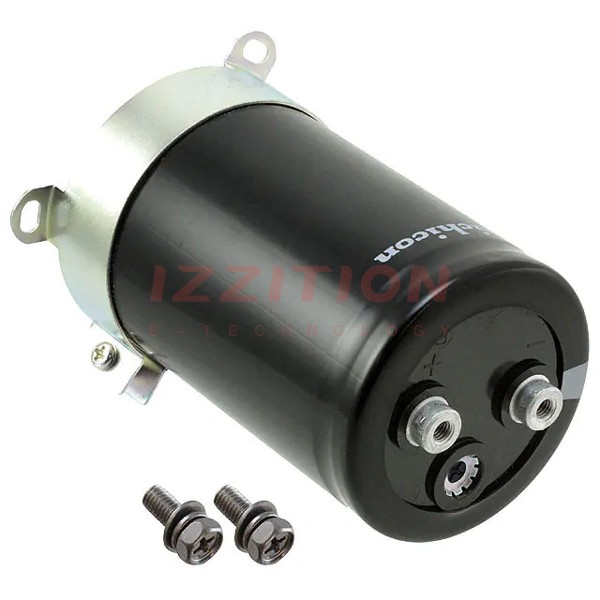

| Part Number | LNT1J223MSE | LNT1V223MSE | LNT1K223MSE | LNT1J224MSE | LNT1E223MSE | LNT1H223MSE |
|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 22000 µF | 22000 µF | 22000 µF | 220000 µF | 22000 µF | 22000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 63 V | 35 V | 80 V | 63 V | 25 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 6.9 A @ 120 Hz | 5.6 A @ 120 Hz | 8.4 A @ 120 Hz | 23.7 A @ 120 Hz | 4.9 A @ 120 Hz | 6.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 7.935 A @ 10 kHz | 6.44 A @ 10 kHz | 9.66 A @ 10 kHz | 27.255 A @ 10 kHz | 5.635 A @ 10 kHz | 7.245 A @ 10 kHz |
| Impedance | - | - | - | - | - | - |
| Lead Spacing | 0.866" (22.00mm) | 0.500" (12.70mm) | 1.126" (28.60mm) | 1.252" (31.80mm) | 0.500" (12.70mm) | 0.866" (22.00mm) |
| Size / Dimension | 2.008" Dia (51.00mm) | 1.378" Dia (35.00mm) | 2.500" Dia (63.50mm) | 3.543" Dia (90.00mm) | 1.378" Dia (35.00mm) | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 4.055" (103.00mm) | 4.055" (103.00mm) | 4.055" (103.00mm) | 8.780" (223.00mm) | 3.268" (83.00mm) | 3.268" (83.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
