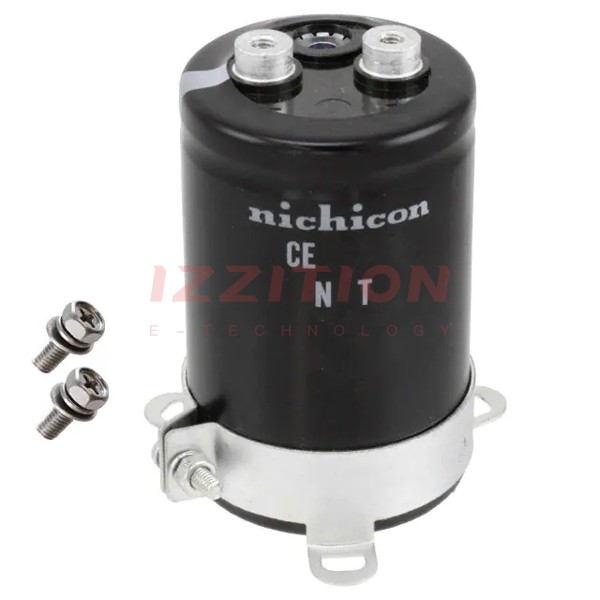

| Part Number | LNT1J153MSE | LNT1V153MSE | LNT1K153MSE | LNT1J154MSE | LNT1H153MSE | LNT1J103MSE |
|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 15000 µF | 15000 µF | 15000 µF | 150000 µF | 15000 µF | 10000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 63 V | 35 V | 80 V | 63 V | 50 V | 63 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 5.9 A @ 120 Hz | 5.1 A @ 120 Hz | 6.4 A @ 120 Hz | 21 A @ 120 Hz | 5.5 A @ 120 Hz | 5 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.785 A @ 10 kHz | 5.865 A @ 10 kHz | 7.36 A @ 10 kHz | 24.15 A @ 10 kHz | 6.325 A @ 10 kHz | 5.75 A @ 10 kHz |
| Impedance | - | - | - | - | - | - |
| Lead Spacing | 0.866" (22.00mm) | 0.500" (12.70mm) | 0.866" (22.00mm) | 1.252" (31.80mm) | 0.500" (12.70mm) | 0.500" (12.70mm) |
| Size / Dimension | 2.008" Dia (51.00mm) | 1.378" Dia (35.00mm) | 2.008" Dia (51.00mm) | 3.543" Dia (90.00mm) | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 3.268" (83.00mm) | 3.268" (83.00mm) | 4.055" (103.00mm) | 6.811" (173.00mm) | 4.055" (103.00mm) | 4.055" (103.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
