Please send RFQ , we will respond immediately.

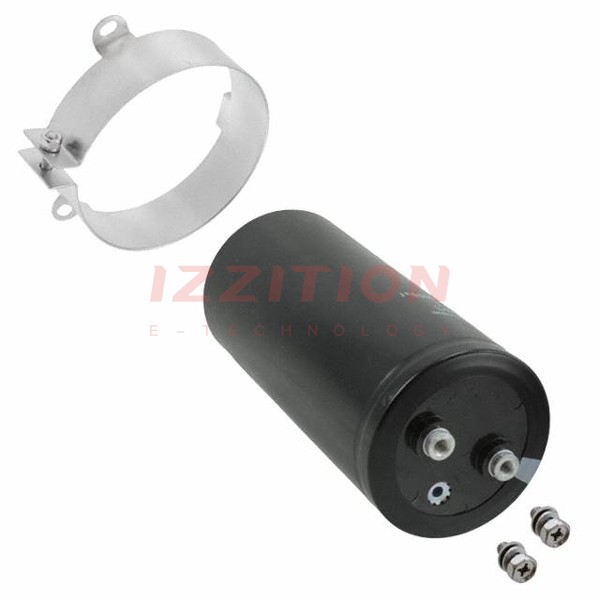

| Part Number | LNT1E105MSE | LNT1A105MSE | LNT1C105MSE | LNT1E104MSE |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active |
| Capacitance | 1 F | 1 F | 1 F | 100000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 25 V | 10 V | 16 V | 25 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 26.4 A @ 120 Hz | 20.1 A @ 120 Hz | 26.1 A @ 120 Hz | 11.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 30.36 A @ 10 kHz | 23.115 A @ 10 kHz | 30.015 A @ 10 kHz | 13.225 A @ 10 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | 1.634" (41.50mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.126" (28.60mm) |
| Size / Dimension | 3.937" Dia (100.00mm) | 3.543" Dia (90.00mm) | 3.543" Dia (90.00mm) | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 8.819" (224.00mm) | 8.780" (223.00mm) | 8.780" (223.00mm) | 4.055" (103.00mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
