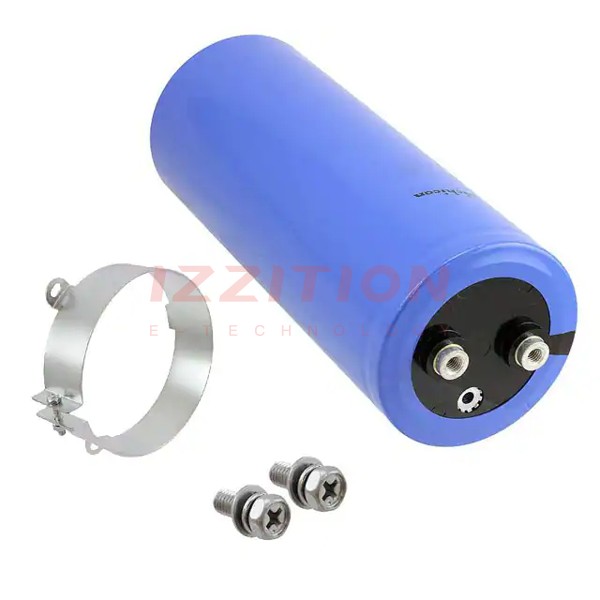

| Part Number | LNR2C104MSE | LNR1C104MSE | LNR2A104MSE | LNR2C103MSE |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active |
| Capacitance | 100000 µF | 100000 µF | 100000 µF | 10000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 160 V | 16 V | 100 V | 160 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -25°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 24.4 A @ 120 Hz | 10.6 A @ 120 Hz | 22.1 A @ 120 Hz | 9.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 29.28 A @ 10 kHz | 12.19 A @ 10 kHz | 25.415 A @ 10 kHz | 10.92 A @ 10 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | 1.634" (41.50mm) | 0.500" (12.70mm) | 1.252" (31.80mm) | 1.126" (28.60mm) |
| Size / Dimension | 3.937" Dia (100.00mm) | 1.378" Dia (35.00mm) | 3.543" Dia (90.00mm) | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 10.000" (254.00mm) | 4.843" (123.00mm) | 6.811" (173.00mm) | 4.055" (103.00mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
