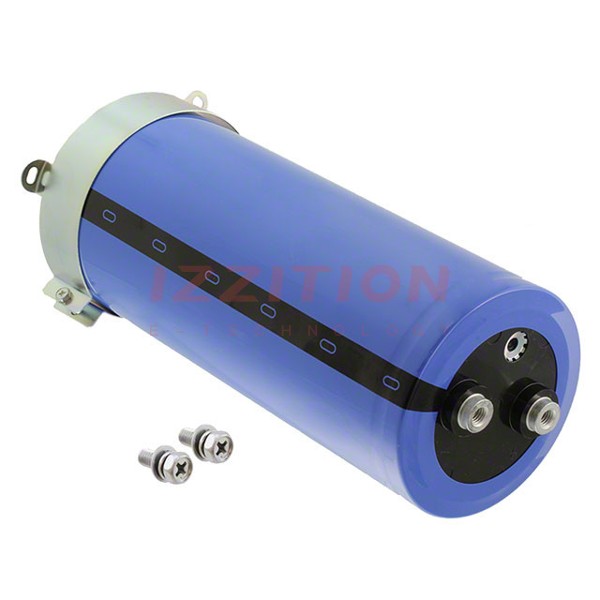

| Part Number | LNR2A224MSE | LNR1A224MSE | LNR2A223MSE |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Capacitance | 220000 µF | 220000 µF | 22000 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 100 V | 10 V | 100 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 32.7 A @ 120 Hz | 13 A @ 120 Hz | 6.8 A @ 120 Hz |
| Ripple Current @ High Frequency | - | 14.95 A @ 10 kHz | 7.82 A @ 10 kHz |
| Impedance | - | - | - |
| Lead Spacing | 1.634" (41.50mm) | 0.866" (22.00mm) | 0.866" (22.00mm) |
| Size / Dimension | 3.937" Dia (100.00mm) | 2.008" Dia (51.00mm) | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 10.000" (254.00mm) | 4.055" (103.00mm) | 4.055" (103.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
